WALL MOUNT

You can purchase the Wall Mount accessory to mount the display on a concrete or wooden wall.

To mount the display on the wall, follow these steps:

1. Disconnect the AC power adaptor from the power source to turn off the display.

2. Lay the display face down on a flat surface.

CAUTION: Always use a soft material, cloth or foam, to protect the display when placing the screen face down.

Place Cloth.png

 3. Mount the monitor bracket at the back of the display. Secure the bracket with four M4x12 bolts and washers.

4. Place the wall plate on the wall and mark the four mounting holes.

5. Perform one of the following:

•  For a concrete wall, drill four 8 mm holes on the concrete wall, and insert an anchor into each hole.

•  For wooden mount, drill two 3.8 mm holes on the wood, and insert an anchor into each hole.

6. Align the wall plate with the mounting holes. Secure the plate to the wall with lag bolts and log bolt washers.

CONCRETE WALL

WOODEN WALL

7. Align the display with the wall plate, and then carefully slide down the display until the bracket is safely secured to the wall plate.

8. Secure the bracket to the wall plate with two M5x15 bolts and M5 washers.

9. Plug the AC power adaptor into a power source to turn on the display.

FIX-028 TABLE MOUNT

To install the FIX-028 table mount to the display, follow these steps:
1. Disconnect the AC power adaptor from the power source to turn off the display.
2. Pull up the stand from the base and the VESA plate from the stand.

​3. Lay the display face down on a flat surface.

CAUTION: Always use a soft material, cloth or foam, to protect the display when placing the screen face down.

4. Mount the VESA plate at the back of the display. Secure the VESA plate with four M4x12 bolts and washers.

5. Set the display in an upright position.

6. Connect the AC power adaptor into a power source to turn on the display.

FIX-030 TABLE MOUNT

The FIX-030 table mount can be installed using a weighted or grommet base.


To install the FIX-030 table mount to the display, follow these steps:

1. Disconnect the AC power adaptor from the power source to turn off the display.
2. Install the Pole to the Weighted Base or to the Grommet Base, and secure with three M5 x 14 bolts using an Allen Key. For a Grommet Base, attach a soft pad at the base.

NOTE: If an existing grommet hole comes with a plastic protector, remove it to ensure to have a flat surface before installing the table mount.

3. To install the table mount to a hole in a desk, drill a 10 mm hole and secure the mount with a Support Plate, M10 Washer, Spring Washer, and M10 Bolt using a wrench.

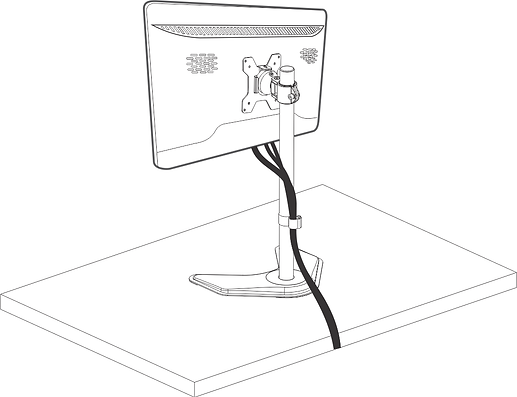

4. Install the Monitor Arm to the pole. Fasten the bolt with an Allen Key. Attach the Wire Clip to the pole.

5. Install the VESA Plate at the back of the display, and then secure it with four M4 x 12 thumbscrews.

6. Slide down the display carefully until the plate locks into the head of the monitor arm, and then secure the display with a M4 x 6 bolt.

7. Fasten the Grub Screw in the monitor arm to fix the tilting angle using an Allen Key.

8. Route the cables out the display and through the Wire Clip.
